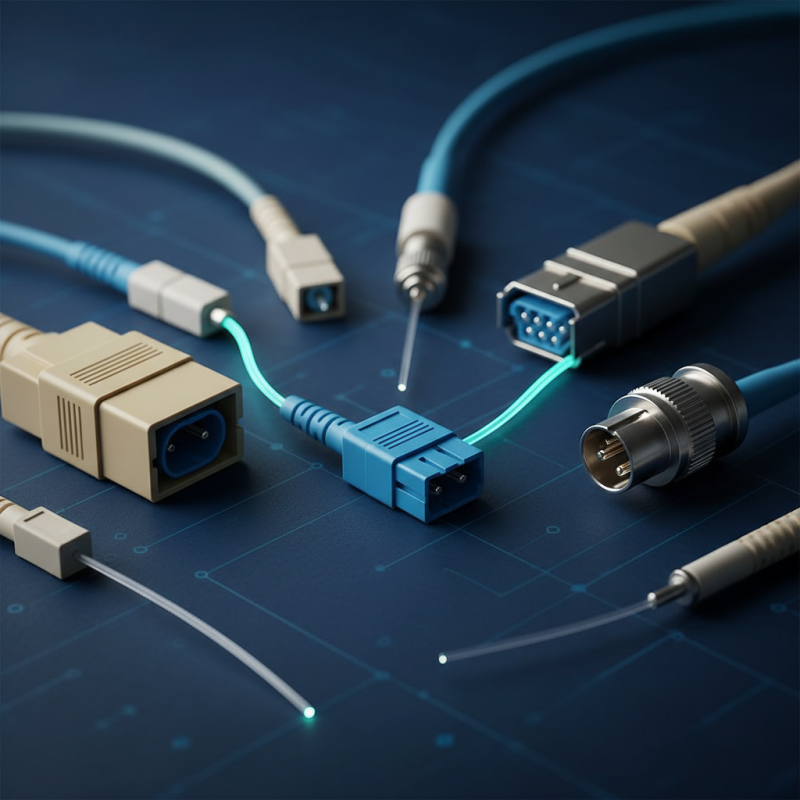

What is Fiber Optic Connectors and How Do They Work?
Fiber Optic Connectors play a crucial role in modern communication technology. They are essential components that link fiber optic cables and devices. These connectors enable high-speed data transmission with minimal signal loss. The design of Fiber Optic Connectors ensures precise alignment and secure connections.
Understanding how these connectors work is essential for anyone involved in telecommunications or networking. They come in various types, each with unique features. Some connectors have a simple push-pull mechanism. Others may require intricate handling. Users often face challenges in selecting and installing them correctly. Misalignment can lead to data loss and connectivity issues.
Fiber Optic Connectors are integral but can frustrate users. Choosing the right type is vital. Many users overlook this aspect. Quality matters greatly, yet some connectors are poorly made. This can result in unreliable connections. It's crucial to reflect on these limitations while recognizing their importance in efficient communication systems.
Understanding Fiber Optic Connectors: An Overview
Fiber optic connectors play a crucial role in modern communication systems. They facilitate the connection of optical fibers, enabling data to be transmitted over long distances. These connectors come in various designs, each serving a specific purpose. Common types include SC, LC, and ST connectors. Each type varies in performance and application.
Understanding how these connectors work is essential. They must align optical fibers precisely to minimize signal loss. If the alignment is off, it can lead to weaker signals or even complete data loss. Proper installation and maintenance are vital for optimal performance. Technicians must pay attention to cleaning and handling since dust and scratches can degrade the connection quality.
The world of fiber optic connectors is not without challenges. Many users struggle with choosing the right connector for their needs. Moreover, installation can seem daunting without proper training. Mistakes can happen at any stage, leading to potential issues down the line. Careful planning and understanding are crucial to avoid these pitfalls.
Types of Fiber Optic Connectors and Their Applications
Fiber optic connectors play a critical role in modern communication systems. There are several types of connectors available, each with unique features. Common types include SC, LC, ST, and MTP/MPO connectors. The SC connector is popular for its ease of use and low insertion loss. According to a recent market report, the demand for SC connectors is expected to grow by 8% annually.
LC connectors are smaller and allow for higher density connections. They are favored in data centers and telecom networks. A study shows that around 45% of new installations now use LC connectors due to their space efficiency. MTP/MPO connectors are ideal for high-performance applications. They enable multiple fibers to be connected at once, significantly reducing installation time.
Each type of connector has its applications and limitations. For instance, ST connectors are robust but bulkier, making them less suitable for high-density environments. This adaptability in various situations highlights the importance of selecting the right type. Industry reports estimate that nearly 25% of installations fail due to improper choice of connectors. Thus, understanding these nuances is vital for optimal performance.
The Structure and Components of Fiber Optic Connectors
Fiber optic connectors are essential components that facilitate the connection of optical fibers. They enable light signals to travel between different optical devices or networks. The structure of these connectors plays a crucial role in ensuring efficient transmission of data.
At the core of a fiber optic connector is the ferrule. The ferrule is a small tube made of ceramic or metal that holds the optical fibers in place. It aligns the fibers precisely to minimize light loss. Surrounding the ferrule is the connector body, which protects the fibers and provides a secure grip for installation. The locking mechanism, often a latch or twist-lock, ensures that the connection remains stable. Each of these components must be manufactured with exacting standards. Minor flaws can lead to significant data loss or signal degradation.
The fiber optic connector does not simply snap together. Installation and maintenance can be tricky. Inadequate cleaning of fibers can result in dirt buildup. Even a grain of dust can disrupt signal quality. Connections may require frequent checks and adjustments. Users often overlook these steps, which can lead to frustration. Proper understanding of the connector's structure is essential for effective use. Recognizing these elements can aid in troubleshooting issues and improving performance.
What is Fiber Optic Connectors and How Do They Work? - The Structure and Components of Fiber Optic Connectors
| Component | Description | Function |
| Connector Housing | The outer casing that holds the internal components. | Provides protection and structural integrity. |
| Ferrule | Holds the optical fibers in alignment within the connector. | Ensures accurate light transmission by maintaining the fiber alignment. |
| End Face | The polished surface of the optical fiber that connects with another fiber or device. | Facilitates smooth light transfer between connections. |
| Boot | A protective cover over the connector that minimizes strain on the fiber. | Protects the fiber from bending and environmental factors. |
| Alignment Sleeve | A cylindrical component that helps align two fiber connectors. | Ensures accurate positioning for optimal light transmission. |
How Fiber Optic Connectors Work: The Science Behind Connectivity
Fiber optic connectors are vital components in modern telecommunications. These connectors facilitate the transfer of data through light signals. They utilize precise alignment for minimal signal loss. A misaligned connector can cause a drop in efficiency and speed. According to industry reports, poorly connected fibers can lead to a staggering 30% increase in signal loss. This highlights the importance of optimal installation.
The science behind fiber optic connectors is fascinating. Light travels through fiber cables via total internal reflection. Connectors must ensure the light paths in the fibers seamlessly join. Any imperfection in this connection can hinder performance. For instance, a poorly polished fiber end can lead to excessive back reflection, another problem identified in various studies. Research shows that even slight misalignments in connectors can degrade data integrity.
Precision is critical, yet often overlooked in deployment. Many technicians rush installations, which can result in subpar connections. A significant number of service disruptions can be traced back to faulty connectors. Addressing these issues requires diligence and attention to detail in both design and implementation processes. Quality assurance measures could mitigate such risks, but they are commonly neglected.
Fiber Optic Connector Types and Their Performance
This chart displays the average insertion loss in decibels (dB) for various types of fiber optic connectors. Lower values indicate better performance and efficiency in transmitting signals.
Installation and Maintenance of Fiber Optic Connectors
Fiber optic connectors are critical for the transmission of light signals in communication systems. Proper installation and maintenance ensure optimal performance. When installing fiber optic connectors, cleanliness is paramount. Dust and debris can disrupt signal quality. Use a fiber cleaning tool before connecting.
It's also essential to carefully align the fibers during installation. Misalignment can lead to increased loss and poor data transmission. Consider using visual inspection tools to double-check your work. Pay attention to the connector type and ensure it suits your system's requirements.
Tips: Always wear gloves when handling fibers to avoid contamination.
Routine maintenance is necessary, too. Regularly check connections for wear or damage. Replace any faulty parts immediately. Keeping a clean workspace can help maintain the quality of your fibers.
Tips: Keep connectors covered when not in use. Store them in protective containers.
